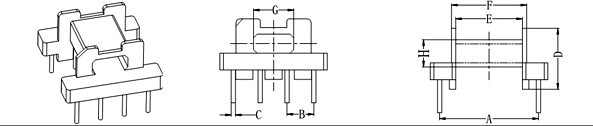

EFD series
|
EFD Series |
|
|
NO |
Type |
Model name |
Material |
A |
B |
C |
D |
E |
F |
G |
H |
|
B1 |
B2 |
G1 |
G2 |
H1 |
H2 |
|
1 |
EFD-1201 |
EFD12-(2+5P)-1S-H |
PHENOLIC |
10.50 |
2.50 |
|
∮0.50 |
6.80 |
7.70 |
8.80 |
5.40 |
2.40 |
6.30 |
3.30 |
|
2 |
EFD-1501 |
EFD15-(4+4P)-1S-H |
PHENOLIC |
13.80 |
3.75 |
|
∮0.60 |
8.30 |
9.30 |
10.50 |
5.60 |
2.60 |
6.80 |
3.70 |
|
3 |
EFD-2001 |
EFD20-(4+4P)-1S-H |
PHENOLIC |
17.60 |
5.00 |
|
∮0.60 |
10.0 |
13.50 |
14.90 |
9.20 |
4.00 |
10.70 |
5.20 |
|
4 |
EFD-2501 |
EFD25-(5+5P)-1S-H |
PHENOLIC |
22.50 |
5.00 |
|
∮0.70 |
13.0 |
16.70 |
17.90 |
11.70 |
5.50 |
12.80 |
6.80 |
|
5 |
EFD-2501-1 |
EFD25-(5+5P)-1S-H |
PHENOLIC |
22.50 |
5.00 |
|
∮0.70 |
14.3 |
16.70 |
17.90 |
11.70 |
5.50 |
12.80 |
6.80 |
|
6 |
EFD-3001 |
EFD30-(6+6P)-1S-H |
PHENOLIC |
27.50 |
5.00 |
|
∮0.80 |
13.80 |
20.50 |
21.80 |
15.00 |
5.20 |
16.20 |
6.40 |
|
7 |
EFD-3002 |
EFD30-(6+6P)-1S-H |
PHENOLIC |
27.50 |
5.00 |
|
∮0.80 |
15.8 |
20.50 |
21.80 |
15.00 |
5.20 |
16.20 |
6.50 |
