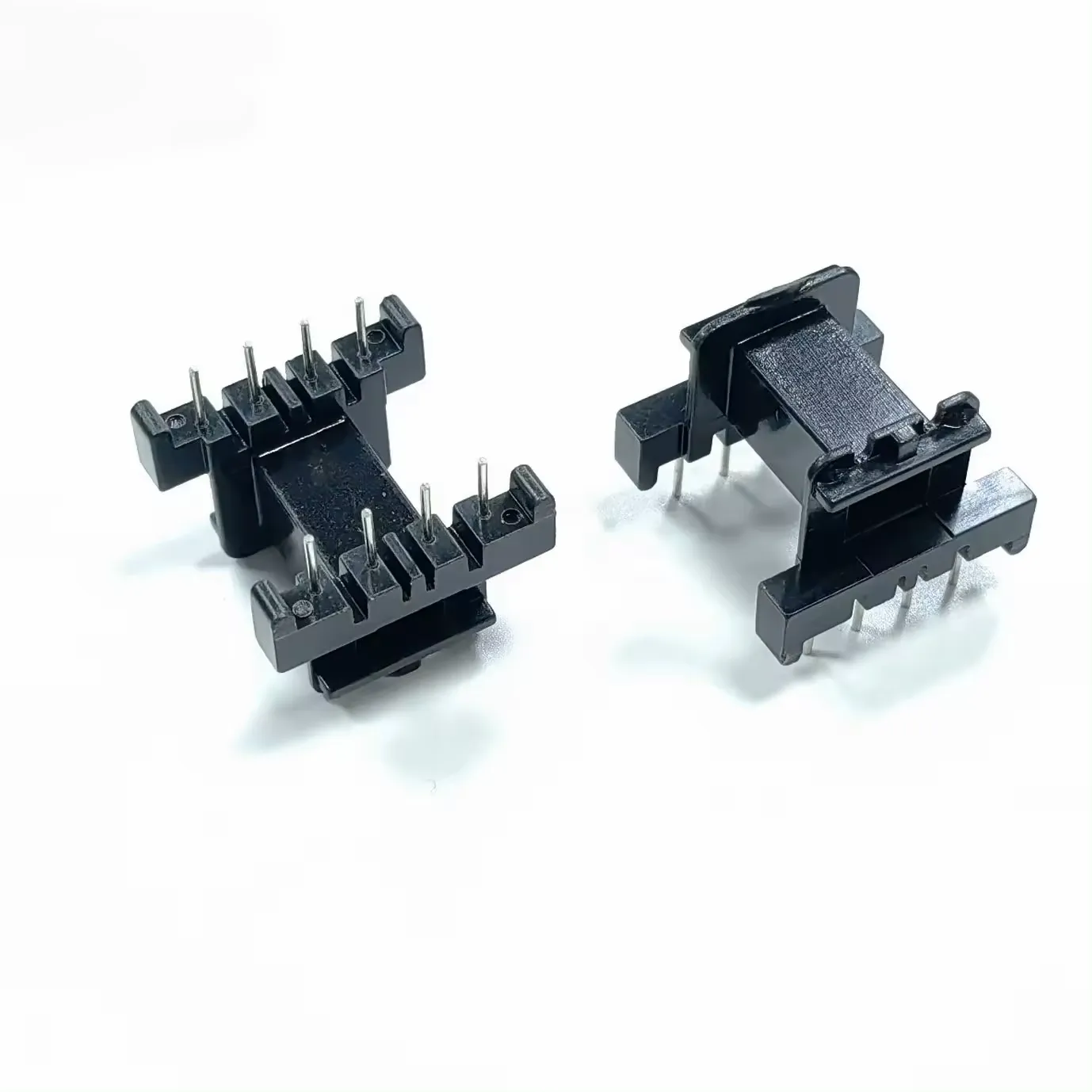

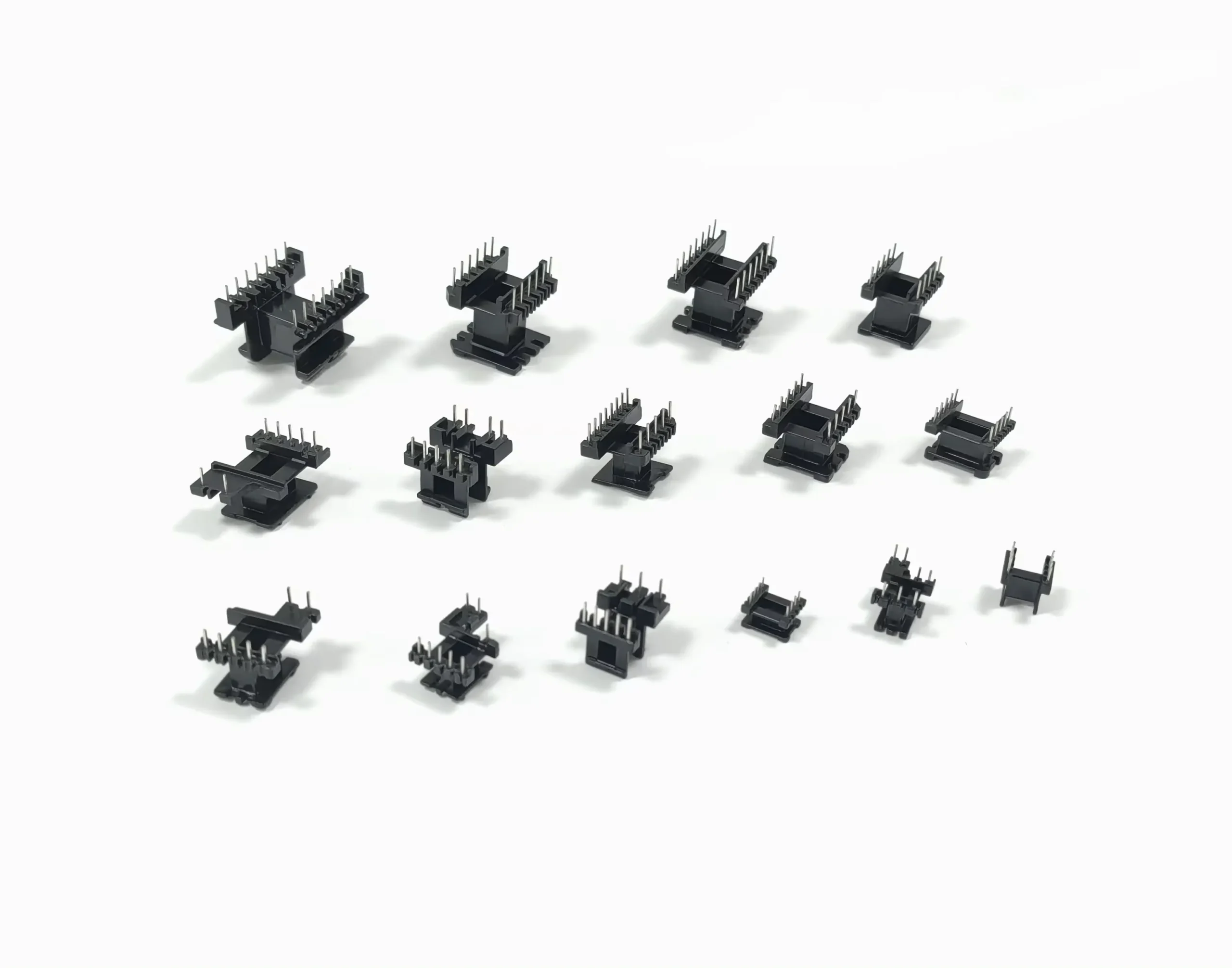

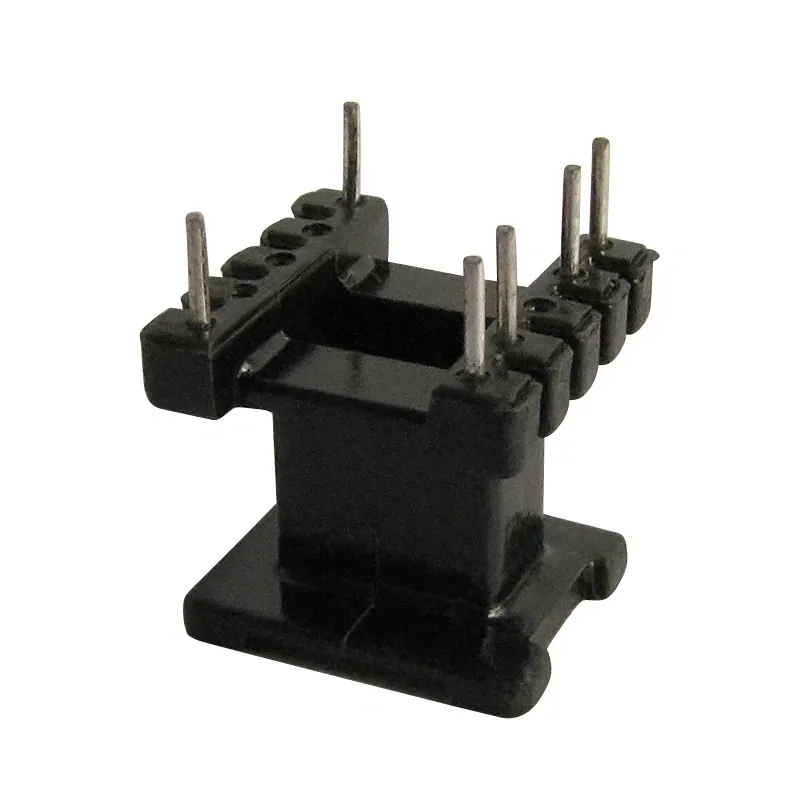

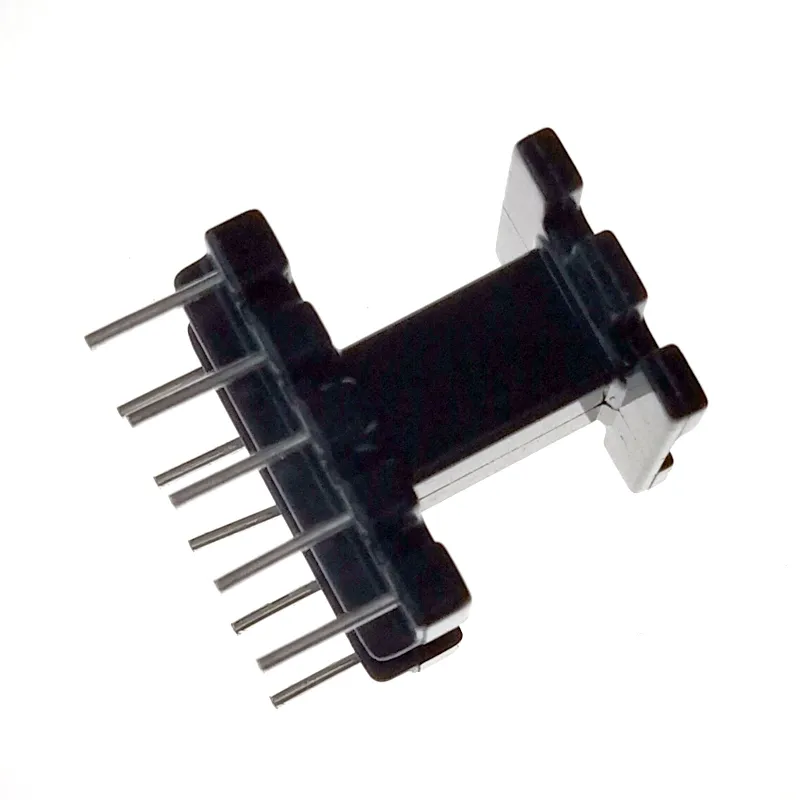

EE Series Bobbin

Shape:  EE
Size:  Standard and Customized
Color:  Black, White
Material:  Phenolic, Nylon

Category:

Description

EE series

EE Series EE-bobbins
Horizontal square hole
No Type Model name Material A B1 B2 C D E F G1 G2 H1 H2
1 EE-0803 EE-8.3(3+3P)-1S-H PHENOLIC 7.00 2.50 ∮0.60 8.4 4.80 5.60 2.15 4.00 3.00 4.85
2 EE-0804 EE-8.3(2+2P)-2S-H PHENOLIC 6.80 5.00 ∮0.50 8.4 4.70 5.70 2.20 4.10 3.20 5.10
3 EE-0804-1 EE-8.3(2+2P)-2S-H PHENOLIC 6.80 5.00 ∮0.80 9.0 4.70 5.70 2.20 4.10 3.20 5.10
4 EE-1001 EE10(4+4P)-1S-H PHENOLIC 10.00 2.50 ∮0.60 10.5 6.60 8.10 2.80 5.50 3.60 6.20
5 EE-1001-1 EE10(4+4P)-1S-H PHENOLIC 10.50 2.50 ∮0.60 10.5 6.60 8.10 2.80 5.50 3.60 6.20
6 EE-1002 EE10(4+4P)-1S-H PHENOLIC 10.50  2.50 ∮0.50  10.0 6.60 8.10 3.10 5.50 3.90 6.30
7 EE-1308 EE13(4+4P)-1S-H PHENOLIC 12.50 3.80 ∮0.50 14.1 7.50 8.80 3.10 6.30 4.40 7.50
8 EE-1309 EE13(4+4P)-1S-H PHENOLIC 10.00 2.50 ∮0.50 12.8 7.30 8.80 3.30 6.20 4.30 7.40
9 EE-1401 EE14(3+3P)-1S-H PHENOLIC 8.00 3.50 ∮0.70 12.4 5.50 6.80 4.00 5.40 5.10 6.50
10 EE-1402 EE14(3+3P)-1S-H PHENOLIC 8.00 3.50 ∮0.70 13.4 5.50 6.80 4.00 5.40 5.10 6.50
11 EE-1601 EE16(6+6P)-4S-H PHENOLIC 12.50 2.50 ∮0.60 11.6 8.10 9.90 4.30 5.40 5.70 6.70
12 EE-1602 EE16(5+5P)-1S-H PHENOLIC 13.00 2.50 ∮0.60 13.4 8.90 10.20 4.30 5.40 5.60 6.70
13 EE-1602-1 EE16(5+5P)-1S-H PHENOLIC 13.00 2.50 ∮0.60 13.3 8.60 10.00 4.30 5.30 5.40 6.50
14 EE-1605  EE16(4+4P)-1S-H PHENOLIC 11.00 3.00 ∮0.60 14.5 8.40 9.90 4.30 5.10 5.50 6.30
15 EE-1606 EE16(2+4P)-1S-H PHENOLIC 15.60 3.80 ∮0.60 11.7 8.90 10.10 4.30 5.10 5.50 6.30
16 EE-1606-1 EE16(2+4P)-1S-H PHENOLIC 15.60 3.80 ∮0.60 11.7 8.90 10.10 4.30 5.10 5.50 6.30
17 EE-1608 EE16(5+5P)-1S-H PHENOLIC 15.50 3.25 ∮0.70 13.1 8.30 10.00 4.30 5.10 5.70 6.50
18 EE-1608-1 EE16(5+5P)-1S-H PHENOLIC 17.50 3.25 ∮0.70 13.2 8.40 10.00 4.30 5.20 5.60 6.30
19 EE-1608-2 EE16(5+5P)-1S-H PHENOLIC 15.50 3.25 ∮0.70 13.1 8.30 10.00 4.30 5.10 5.70 6.50
20 EE-1608-3 EE16(5+5P)-1S-H PHENOLIC 15.50 3.25 ∮0.80 13.1 8.30 10.00 4.30 5.10 5.70 6.50
21 EE-1609 EE16(4+4P)-1S-H PHENOLIC 11.00 3.00 ∮0.60 14.8 8.80 10.00 4.40 5.10 5.40 6.50
22 EE-1612 EE16(3+3P)-1S-H PHENOLIC 12.70 3.80 ∮0.70 12.2 10.00 11.40 5.00 5.00 6.00 6.00
23 EE-1612-1 EE16(3+3P)-2S-H PHENOLIC 12.70 3.80 ∮0.70 12.2 10.00 11.40 5.00 5.00 6.00 6.00
24 EE-1617 EE16(6+6P)-1S-H PHENOLIC 12.50 2.50 ∮0.50 14.8 8.10 9.80 4.30 5.20 5.70 6.60
25 EE-1901 EE19(5+5P)-4S-H PHENOLIC 12.60 3.05 ∮0.70 12.6 9.00 10.80 5.00 5.20 6.50 6.50
26 EE-1901-1 EE19(5+5P)-1S-H PHENOLIC 12.60 3.05 ∮0.70 12.6 9.00 10.80 5.00 5.20 6.50 6.50
27 EE-1902 EE19(4+4P)-1S-H PHENOLIC 13.00 5.00 3.70 ∮0.70 13.0 9.00 10.60 5.20 5.20 6.80 6.80
28 EE-1902-1 EE19(4+4P)-1S-H PHENOLIC 13.00 4.80 ∮0.70 13.0 8.70 10.50 5.40 5.80 6.60 7.10
29 EE-1911 EE19(2+5P)-5S-H PA66 BLACK 13.00 3.50 ∮0.80 15.9 9.80 11.00 5.20 5.20 6.40 6.40
30 EE-1911-1 EE19(2+5P)-5S-H LCP-E4008 13.00 3.50 ∮0.80 16.8 9.80 11.00 5.20 5.20 6.40 6.40
31 EE-2504 EE25(2+2P)-1S-H PBT WHITE 14.80 13.90 ∮0.80 22.4 11.00 12.80 7.10 7.00 8.50 8.50
32 EE-2506 EE25(5+5P)-2S-H PBT WHITE 15.10 5.00 3.80 ∮0.80 21.7 10.10 12.10 6.80 6.80 8.60 8.50
33 EE-2506-1 EE25(5+5P)-1S-H PBT WHITE 15.10 5.00 3.80 ∮0.80 21.7 10.10 12.10 6.80 6.80 8.60 8.50
34 EE-3003 EE30(6+6P)-1S-H PHENOLIC 25.00 5.00 ∮0.80 17.8 17.20 19.40 7.60 7.60 9.00 9.10
35 EE-4005 EE40(7+7P)-1S-H PHENOLIC 25.80 5.00 ∮0.80 27.9 17.60 19.80 12.20 12.20 14.20 14.20
36 EE-5501 EE55(10+10P)-1S-H PET BLACK 44.00 5.00 7.5*1 ∮1.00 51.0 34.00 36.70 17.50 20.90 19.60 23.60
