RM Series Bobbin

Shape:  RM
Size:  Standard and Customized
Color:  Black, White
Material:  Phenolic, Nylon

Category:

Description

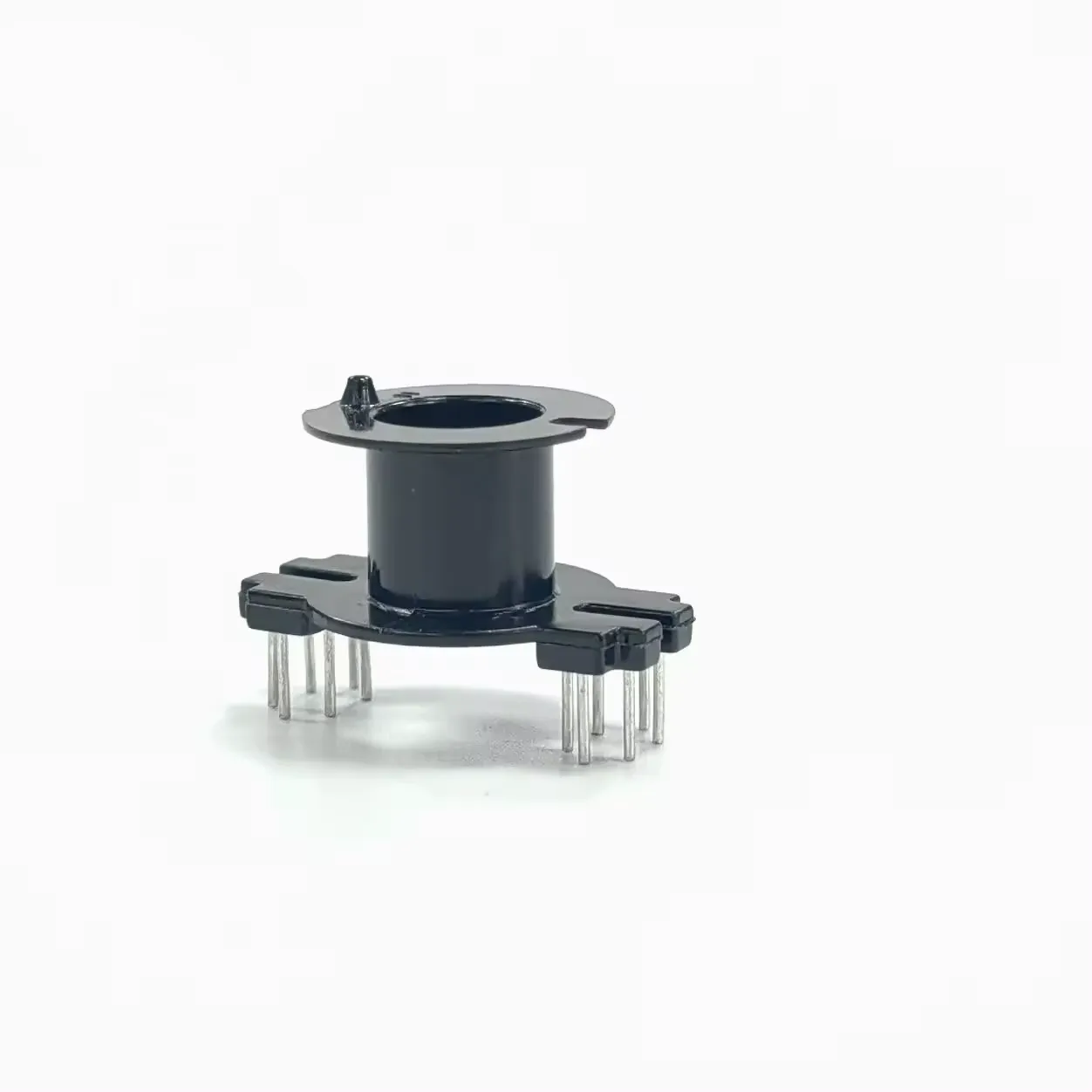

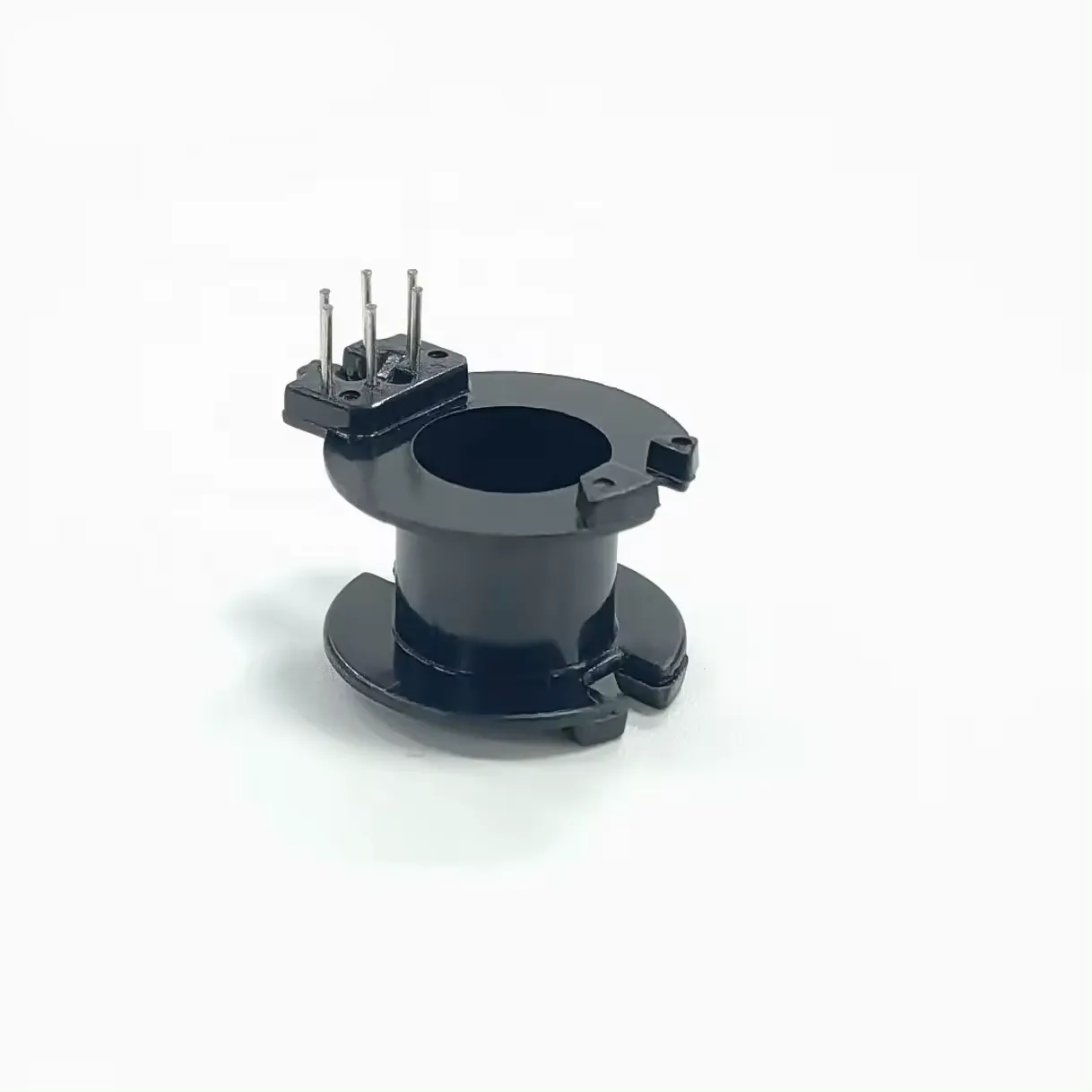

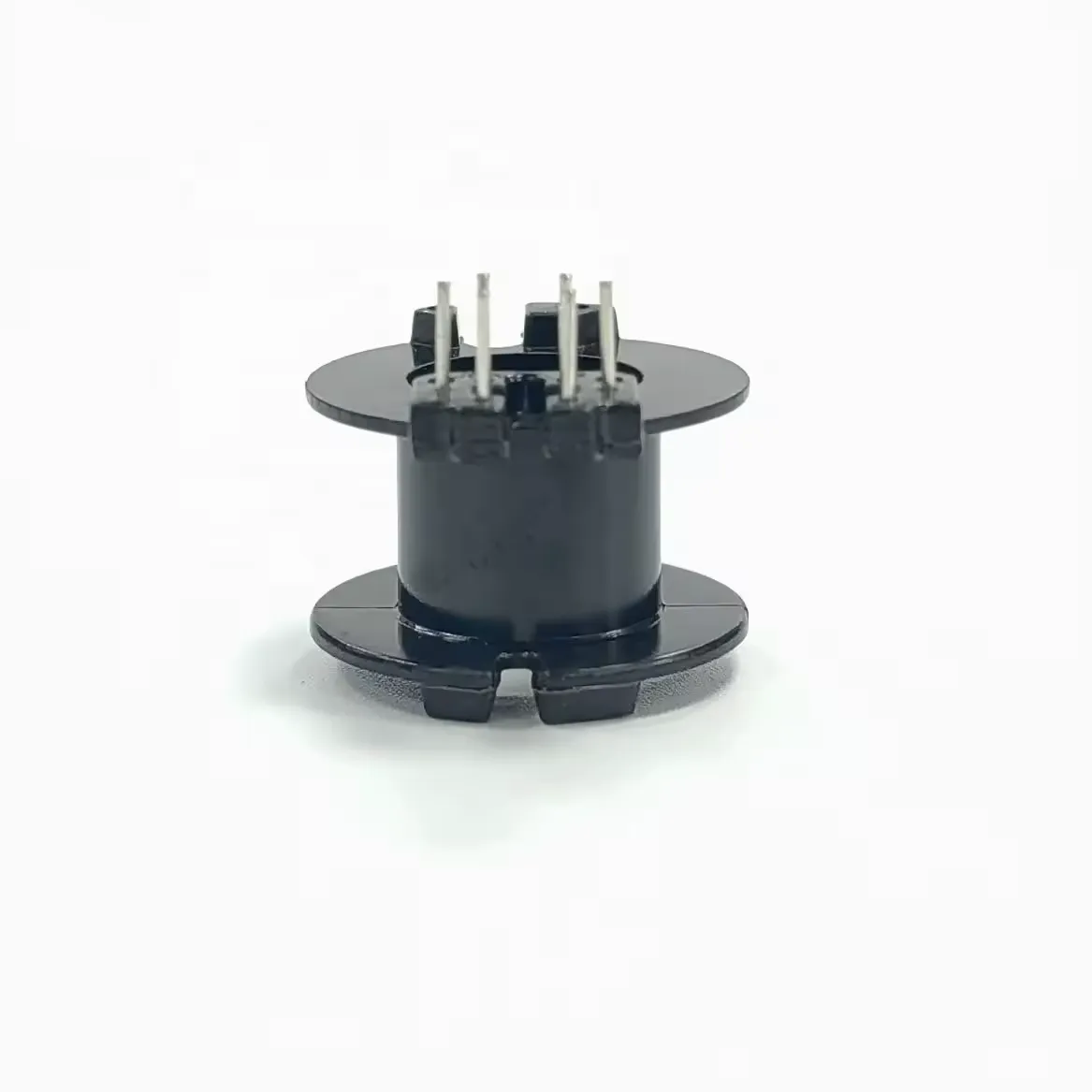

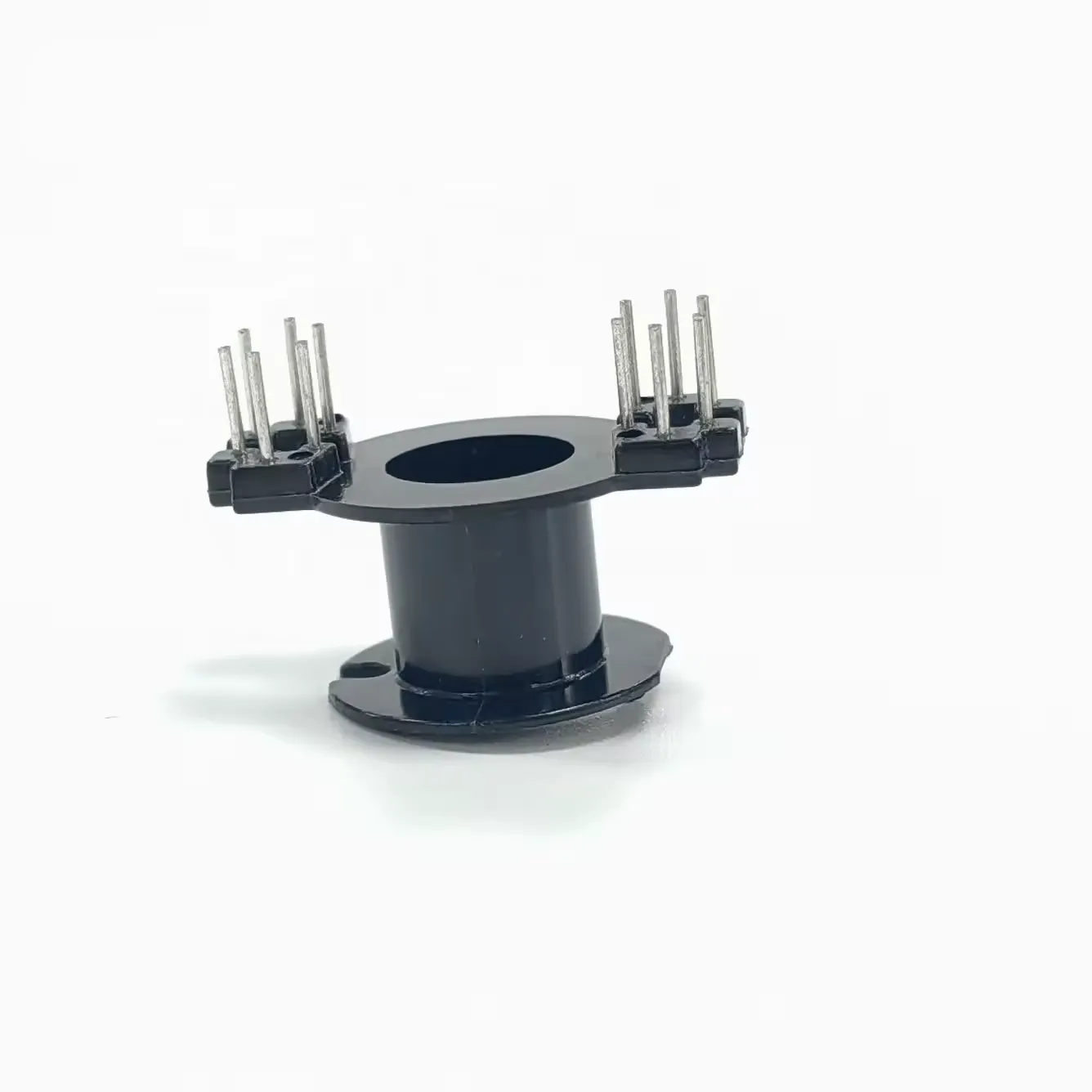

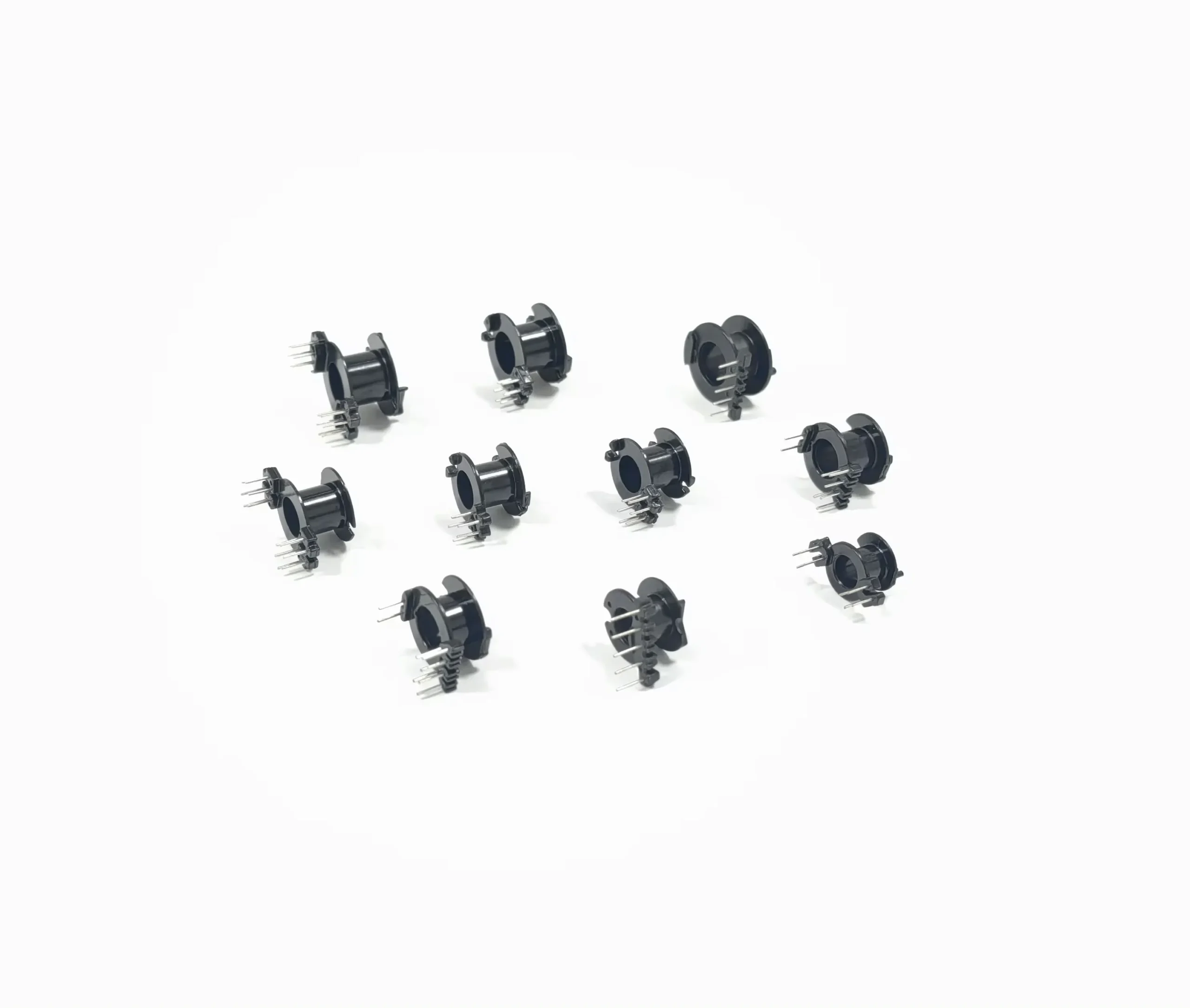

RM Series Bobbin

RM Series

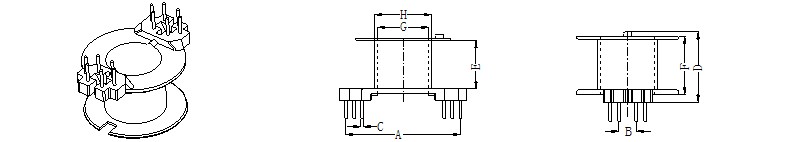

No Type Model name Material A1 A2 A3 B1 B2 C D E F G H
1 RM-0401 RM4(3+3P)-1S PHENOLIC 10.80 7.20 3.60 ∮0.5 8.1 5.80 6.85 ∮4.05 ∮4.90
2 RM-0401-1 RM4(3+3P)-2S PHENOLIC 10.80 7.20 3.60 ∮0.5 8.1 5.80 6.85 ∮4.05 ∮4.90
3 RM-0501 RM5(3+3P)-1S PHENOLIC 14.40 10.80 3.60 ∮0.50 8.3 4.90 6.30 ∮5.00 ∮6.10
4 RM-0601 RM6(3+3P)-1S PHENOLIC 14.50 3.60 ∮0.50 8.9 6.50 7.90 ∮6.50 ∮7.50
5 RM-0601-1 RM6(3+3P)-2S PHENOLIC 14.50 3.60 ∮0.50 8.9 6.50 7.90 ∮6.50 ∮7.50
6 RM-0602 RM6(4+4P)-1S PHENOLIC 11.30 14.40 18.00 3.60 ∮0.50 9.0 6.50 7.90 ∮6.50 ∮7.50
7 RM-0602-1 RM6(4+4P)-2S PHENOLIC 11.30 14.40 18.00 3.60 ∮0.50 9.0 6.50 7.90 ∮6.50 ∮7.50
8 RM-0801 RM8(6+6P)-1S PHENOLIC 21.60 18.00 14.40 3.60 7.20 ∮0.60 12.5 9.30 10.80 ∮8.70 ∮9.90
9 RM-0801-1 RM8(6+6P)-2S PHENOLIC 18.00 14.40 21.50 3.60 7.20 ∮0.60 12.3 9.40 10.80 ∮8.70 ∮9.90
10 RM-0802 RM8(2+4P)-1S PHENOLIC 18.00 14.40 16.20 3.50 5.30 ∮0.60 12.3 9.20 10.80 ∮8.70 ∮9.90
11 RM-1001 RM10(6+6P)-1S PHENOLIC 21.60 18.00 25.20 3.60 7.20 ∮0.60 13.6 10.50 12.00 ∮11.20 ∮12.50
12 RM-1002 RM10(6+6P)-1S PHENOLIC 18.10 21.60 25.20 7.20 3.60 ∮0.60 17.8 10.60 12.30 ∮11.00 ∮12.20
13 RM-1003 RM10-6P-1S PHENOLIC 3.60 7.20 3.60 ∮0.60 15.4 10.60 12.40 ∮11.10 ∮12.50
14 RM-1004 RM10-4P-1S PHENOLIC 3.50 ∮0.80 16.0 10.00 11.80 ∮11.10 ∮12.25
15 RM-1005 RM10(6+6P)-1S PHENOLIC 18.00 21.60 25.00 7.20 3.60 ∮0.60 13.5 10.50 12.00 ∮11.20 ∮12.50
16 RM-1201 RM12(6+6P)-1S PHENOLIC 21.60 28.80 36.00 3.60 10.60 ∮0.80 17.8 14.60 16.5 ∮13.00 ∮14.30
17 RM-1201-1 RM12(6+6P)-2S PHENOLIC 21.60 28.80 36.00 3.60 10.60 ∮0.80 17.8 14.60 16.5 ∮13.00 ∮14.30
18 RM-1401 RM14(6+6P)-1S PHENOLIC 25.20 32.40 39.50 14.30 7.20 ∮0.80 21.7 18.60 20.60 ∮15.20 ∮16.80
19 RM-1402 RM14(2+4P)-1S PHENOLIC 28.70 36.00 7.10 ∮0.80 20.2 9.50 11.50 ∮15.20 ∮16.80
