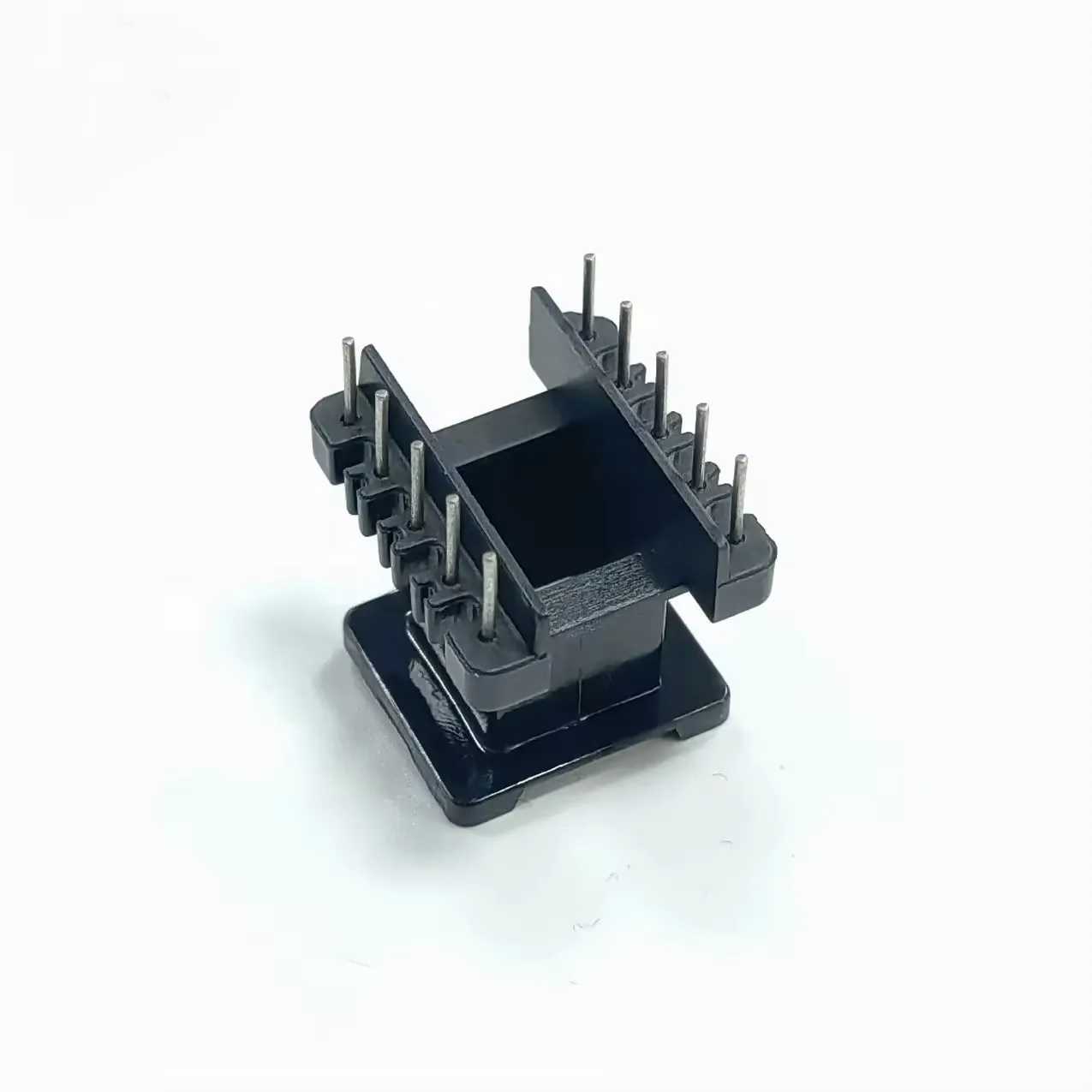

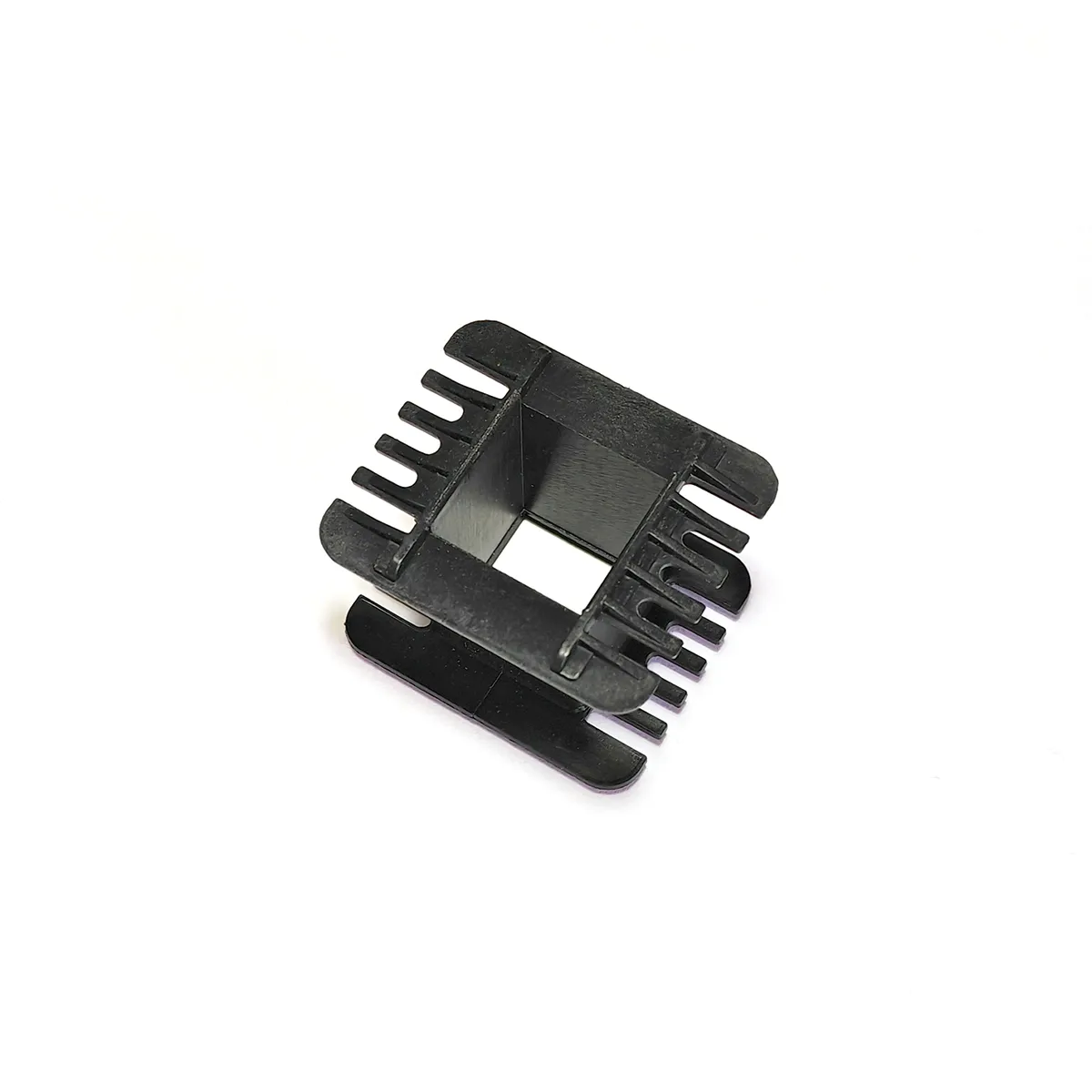

EI Series Bobbin

Shape:  EI

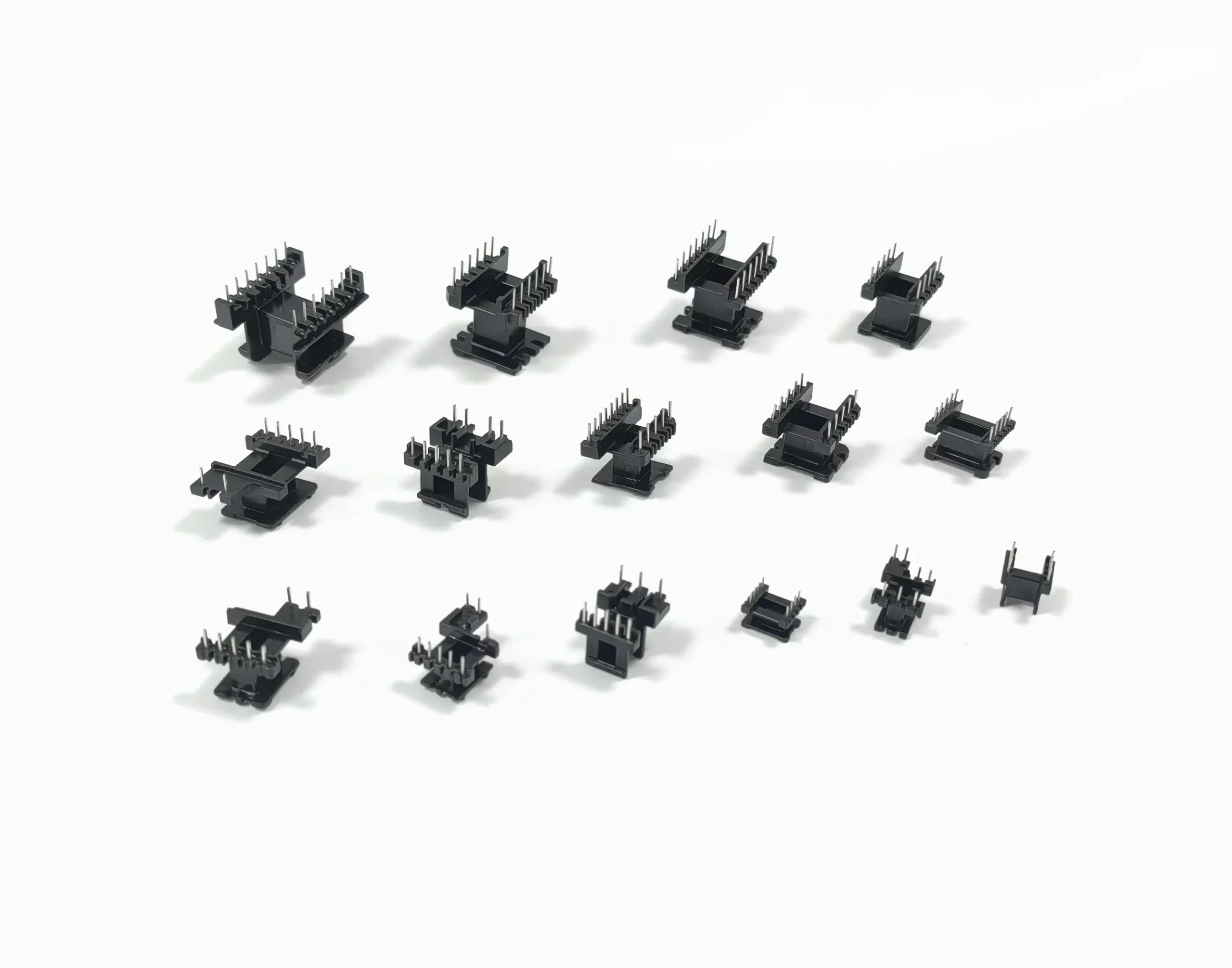

Size:  Standard and Customized

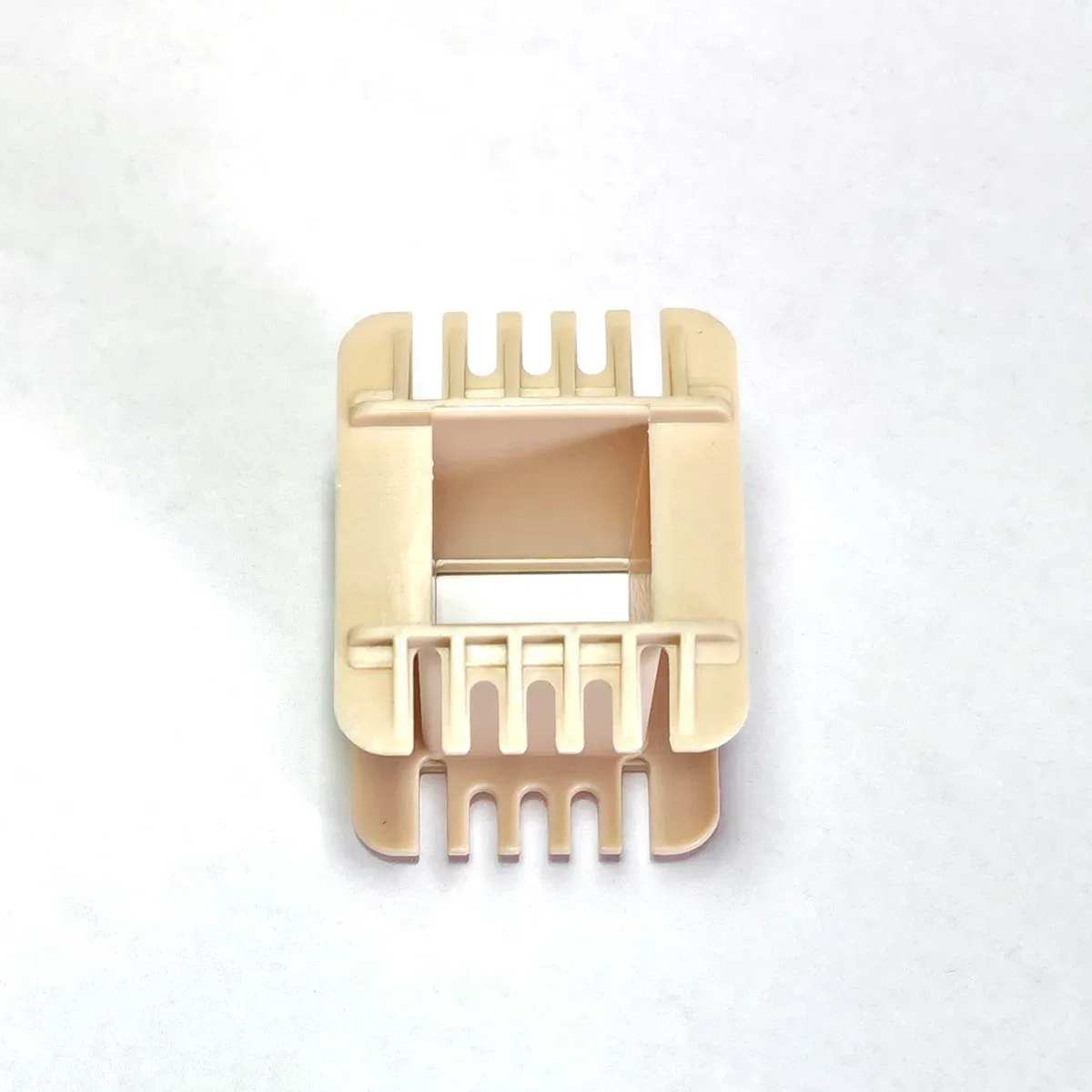

Color:  Black, White
Material:  Phenolic, Nylon

Category:

Description

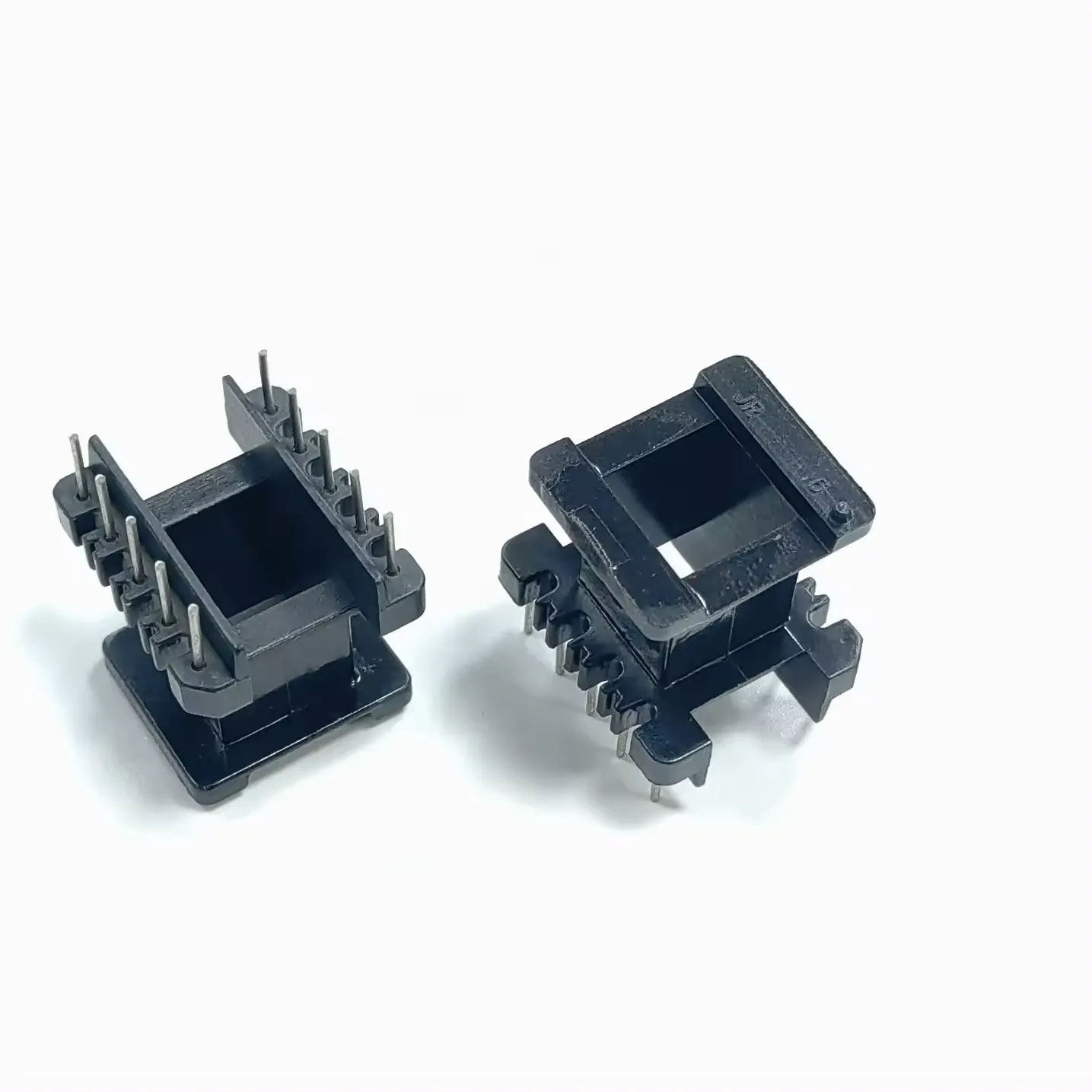

EI Series Bobbin

EI Series EI-Series-Bobbins

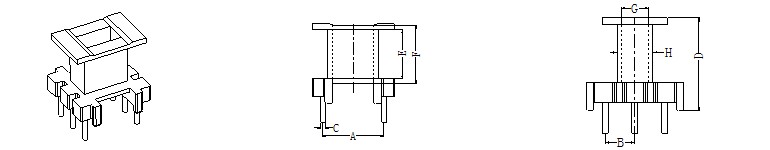

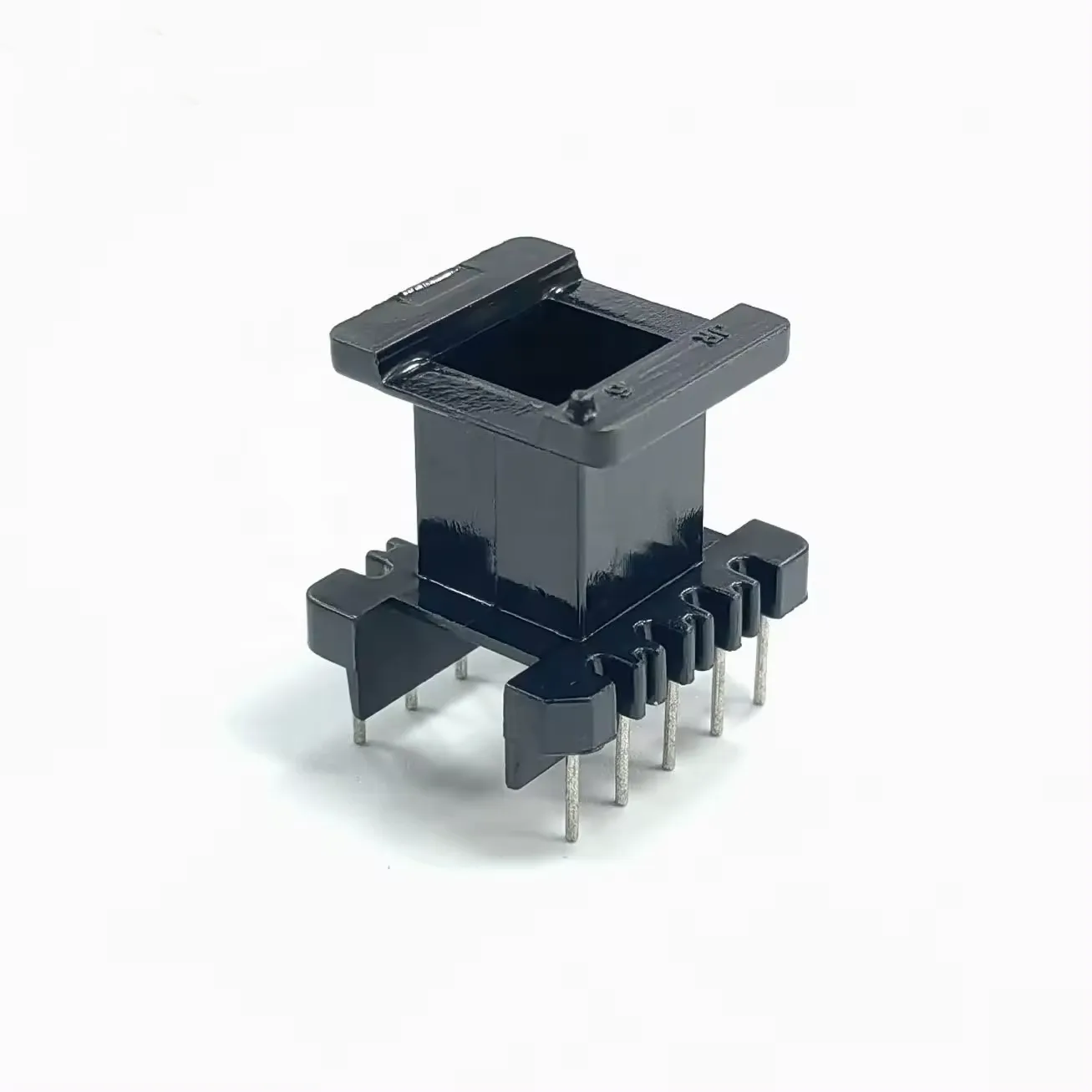

Vertical square hole
NO Type Model name Material A B C D E F G H
B1 B2 G1 G2 H1 H2
1 EI-0801 EE8.3(3+3P)-1S-V PHENOLIC 6.00 2.50 ∮0.50 7.8 4.80 5.70 2.30 4.60 3.00 5.00
2 EI-1001 E10(4+4P)-1S-V PHENOLIC 12.50 2.50 ∮0.60 10.3 7.00 8.30 10.30 2.90 11.30 3.80
3 EI-1301 EI13(5+5P)-1S-V PHENOLIC 10.00 2.50 ∮0.60 10.7 7.30 8.50 3.10 6.50 4.10 7.50
4 EI-1302 EI13(5+5P)-1S-V PHENOLIC 8.50 2.50 ∮0.60 11.0 7.60 9.00 3.00 6.40 4.10 7.50
5 EI-1302-1 EI13(5+5P)-2S-V PHENOLIC 8.50 2.50 ∮0.60 11.0 7.70 8.90 3.20 6.40 4.10 7.50
6 EI-1302-3 EI13(5+5P)-1S-V PHENOLIC 8.50 2.50 ∮0.60 12.0 7.60 9.00 3.00 6.40 4.10 7.50
7 EI-1302-4 EI13(5+5P)-2S PHENOLIC 8.50 2.50 ∮0.60 12.0 7.60 8.90 3.00 6.20 4.00 7.50
8 EI-1303 EI13(5+5P)-1S-V PHENOLIC 12.50 2.50 ∮0.60 10.8 7.50 8.80 3.80 10.00 5.00 11.20
9 EI-1303-1 EI13(5+5P)-2S-V PHENOLIC 12.50 2.50 ∮0.60 10.8 7.50 8.80 3.90 10.20 5.00 11.20
10 EI-1304 EI13(5+5P)-1S-V PHENOLIC 8.80 2.50 ∮0.60 13.0 7.60 8.90 3.00 6.25 7.40 4.10
11 EI-1304-1 EI13(5+5P)-2S-V PHENOLIC 8.80 2.50 ∮0.60 13.0 7.60 8.90 3.00 6.25 4.10 7.40
12 EI-1603 EI16(4+4P)-1S-V PHENOLIC 10.20 3.80 ∮0.70 12.8 8.80 9.90 4.20 5.00 5.30 6.60
13 EI-1604 EI16(5+5P)-1S-V PHENOLIC 10.50 3.25 ∮0.60 13.7 8.30 9.70 4.50 5.10 5.60 6.30
14 EI-1604-1 EI16(5+5P)-1S-V PHENOLIC 10.50 3.25 ∮0.60 14.0 8.30 10.00 4.40 5.10 5.60 6.30
15 EI-1604-2 EI16(5+5+2P)-1S-V PHENOLIC 10.5/13.6 3.25 13.00 ∮0.60 14.0 8.30 10.00 4.40 5.10 5.60 6.30
16 EI-1613 EI16(3+3P)-1S-V PHENOLIC 9.00 3.00 ∮0.60 12.8 8.65 10.00 4.25 5.20 5.30 6.35
17 EI-1615 EI16(3+3P)-1S-V PHENOLIC 10.00 5.00 ∮0.80 14.9 8.60 10.00 4.30 5.20 5.40 6.80
18 EI-1616 EI-16(4+6P)-1S-V PHENOLIC 12.20 3.75 2.70 ∮0.60 16.0 8.30 10.00 4.10 5.10 5.90 6.90
19 EI-1903 EI19(3+4P)-1S-V PHENOLIC 11.00 4.00 4.00 ∮0.70 15.2 8.50 10.50 5.50 5.50 6.50 6.50
20 EI-1904 EI19(3+4P)-1S-V PHENOLIC 10.00 5.00 ∮0.80 16.2 9.10 10.80 5.10 5.60 6.60 7.10
21 EI-1905 EI19(4+6P)-1S-V PHENOLIC 12.20 2.70 3.50 ∮0.60 16.8 9.10 10.90 5.20 5.30 7.00 6.80
22 EI-1908 EI19(3+3P)-1S-V PHENOLIC 11.30 4.70 ∮0.60 14.5 8.70 10.20 5.10 5.10 6.40 6.40
23 EI-1909 EI19(5+5P)-1S-V PHENOLIC 10.20 4.00 ∮0.80 16.6 9.30 10.90 5.20 5.20 6.80 6.80
24 EI-1910 EI19(5+5P)-1S-V PHENOLIC 12.90 3.90 ∮0.70 18.9 9.30 11.00 5.20 5.20 6.70 7.20
25 EI-1912 EI19(5+5P)-1S-V PHENOLIC 13.00 5.10 ∮0.70 20.6 8.80 10.80 5.10 5.10 7.20 7.20
26 EI-2201 EI22(6+7P)-1S-V PHENOLIC 12.00 3.20 3.50 ∮0.70 17.3 8.40 10.30 6.00 6.00 7.70 7.70
27 EI-2202 EI22(5+5P)-1S-V PHENOLIC 10.20 4.00 ∮0.80 17.3 8.50 10.50 6.40 6.40 7.80 8.00
28 EI-2202-1 EI22(5+5P)-1S-V PHENOLIC 10.20 4.00 ∮0.80 17.3 8.70 10.50 6.00 6.00 7.60 7.60
29 EI-2203 EI22(5+5P)-1S-V PHENOLIC 10.30 4.00 ∮0.80 21.3 8.60 10.60 6.40 6.40 8.00 7.80
30 EI-2503 EI25(5+5P)-1S-V PHENOLIC 15.00 5.00 ∮0.80 18.5 10.70 12.40 7.00 7.00 9.00 8.20
31 EI-2505 EI25(4+4P)-1S-V PHENOLIC 12.60 5.00 ∮0.80 19.8 10.80 12.50 7.20 7.20 8.80 9.00
32 EI-2508 EI25(5+8P)-1S-V PHENOLIC 15.20 5.00 3.50 ∮0.80 18.8 10.50 12.30 7.00 6.90 9.00 8.20
33 EI-2808 EI28(8+8P)-1S-V PHENOLIC 20.00 4.00 ∮0.80 19.5 10.00 12.20 11.10 8.00 13.20 9.80
34 EI-2812 EI28(6+6P)-1S-V PHENOLIC 17.80 5.00 ∮0.80 19.5 9.90 12.00 7.60 11.00 13.60 9.70
35 EI-2813 EI28(5+5P)-1S-V PHENOLIC 17.50 5.00 ∮.80 19.0 10.20 11.80 11.20 7.80 13.20 9.80
36 EI-3001 EI30(6+6P)-1S-V PHENOLIC 20.00 5.00 ∮0.80 25.2 14.00 15.80 11.20 11.20 13.20 13.10
37 EI-3002 EI30(6+6P)-1S-V PHENOLIC 20.00 5.00 ∮0.80 25.2 14.00 15.80 11.30 11.20 13.10 13.20
38 EI-3301 EI33(6+6P)-1S-V PHENOLIC 23.00 5.00 ∮0.80 28.2 16.50 18.80 13.10 10.60 15.40 12.70
39 EI-3302 EI33(7+7P)-1S-V PHENOLIC 22.70 5.00 ∮0.80 27.9 16.10 18.00 13.40 10.30 15.30 12.20
40 EI-3505 EI35(6+6P)-1S-V PHENOLIC 20.00 5.00 ∮0.80 27.5 15.80 17.70 10.60 10.70 12.60 12.60
41 EI-4801 EI48-V NYLON 38.00 19.00 21.00 25.00 16.50 25.00 18.20 27.00
